Render Snapshot of 3D Visualization — render

Either captures the current rgl view and displays, or saves the current view to disk.

render_snapshot(
  filename,
  clear = FALSE,
  title_text = NULL,
  title_offset = c(20, 20),
  title_color = "black",
  title_size = 30,
  title_font = "sans",
  title_bar_color = NA,
  title_bar_alpha = 0.5,
  title_just = "left",
  image_overlay = NULL,
  vignette = FALSE,
  vignette_color = "black",
  vignette_radius = 1.3,
  instant_capture = interactive(),
  bring_to_front = FALSE,
  webshot = FALSE,
  width = NULL,
  height = NULL,
  software_render = FALSE,
  camera_location = NULL,
  camera_lookat = c(0, 0, 0),
  background = NULL,
  text_angle = NULL,
  text_size = 30,
  text_offset = c(0, 0, 0),
  point_radius = 0.5,
  line_offset = 1e-07,
  thick_lines = TRUE,
  line_radius = 0.25,
  cache_scene = FALSE,
  reset_scene_cache = FALSE,
  new_page = TRUE,
  print_scene_info = FALSE,
  fsaa = 1,
  rayvertex_lighting = FALSE,
  rayvertex_lights = NULL,
  rayvertex_shadow_map = FALSE,
  ...
)

Arguments

filename: Filename of snapshot. If missing, will display to current device.
clear: Default FALSE. If TRUE, the current rgl device will be cleared.
title_text: Default NULL. Text. Adds a title to the image, using magick::image_annotate.
title_offset: Default c(20,20). Distance from the top-left (default, gravity direction in image_annotate) corner to offset the title.
title_color: Default black. Font color.
title_size: Default 30. Font size in pixels.
title_font: Default sans. String with font family such as "sans", "mono", "serif", "Times", "Helvetica", "Trebuchet", "Georgia", "Palatino" or "Comic Sans".
title_bar_color: Default NA. If a color, this will create a colored bar under the title.
title_bar_alpha: Default 0.5. Transparency of the title bar.
title_just: Default left. Justification of the title.
image_overlay: Default NULL. Either a string indicating the location of a png image to overlay over the image (transparency included), or a 4-layer RGBA array. This image will be resized to the dimension of the image if it does not match exactly.
vignette: Default FALSE. If TRUE or numeric, a camera vignetting effect will be added to the image. 1 is the darkest vignetting, while 0 is no vignetting. If vignette is a length-2 vector, the second entry will control the blurriness of the vignette effect.
vignette_color: Default "black". Color of the vignette.
vignette_radius: Default 1.3. Radius of the vignette, as a porportion of the image dimensions.
instant_capture: Default TRUE if interactive, FALSE otherwise. If FALSE, a slight delay is added before taking the snapshot. This can help stop prevent rendering issues when running scripts.
bring_to_front: Default FALSE. Whether to bring the window to the front when taking the snapshot.
webshot: Default FALSE. Set to TRUE to have rgl use the webshot2 package to take images, which can be used when rgl.useNULL = TRUE.
width: Default NULL. Optional argument to pass to rgl::snapshot3d() to specify the width when software_render = TRUE..
height: Default NULL. Optional argument to pass to rgl::snapshot3d() to specify the height when software_render = TRUE.
software_render: Default FALSE. If TRUE, rayshader will use the rayvertex package to render the snapshot, which is not constrained by the screen size or requires OpenGL.
camera_location: Default NULL. Custom position of the camera. The FOV, width, and height arguments will still be derived from the rgl window.
camera_lookat: Default NULL. Custom point at which the camera is directed. The FOV, width, and height arguments will still be derived from the rgl window.
background: Default NULL, defaults to device background. Background color when software_render = TRUE.
text_angle: Default NULL, which forces the text always to face the camera. If a single angle (degrees), will specify the absolute angle all the labels are facing. If three angles, this will specify all three orientations (relative to the x,y, and z axes) of the text labels.
text_size: Default 30. Height of the text.
text_offset: Default c(0,0,0). Offset to be applied to all text labels.
point_radius: Default 0.5. Radius of 3D points (rendered with render_points()). This scales the existing value of size specified in render_points().
line_offset: Default 1e-7. Small number indicating the offset in the scene to apply to lines if using software rendering. Increase this if your lines aren't showing up, or decrease it if lines are appearing through solid objects.
thick_lines: Default TRUE. If software_render = TRUE, this will render path segments as thick cylinders. Otherwise, it will render the lines using a single-pixel anti-aliased line algorithm.
line_radius: Default 0.25. The radius of the thick cylinders if thick_lines = TRUE and software_render = TRUE.
cache_scene: Default FALSE. Whether to cache the current scene to memory so it does not have to be converted to a raymesh object each time render_snapshot() is called. If TRUE and a scene has been cached, it will be used when rendering.
reset_scene_cache: Default FALSE. Resets the scene cache before rendering.
new_page: Default TRUE. Whether to call grid::grid.newpage() before plotting the image.
print_scene_info: Default FALSE. If TRUE, it will print the position and lookat point of the camera.
fsaa: Default 1. Integer specifying the amount of anti-aliasing applied software_render = TRUE.
rayvertex_lighting: Default FALSE. If TRUE and software_render = TRUE, the scene will use rayvertex lighting when rendering the scene, using the lights specified in rayvertex_lights. If no lights are specified there, they will be pulled from light objects in the rgl scene.
rayvertex_lights: Default NULL. Use rayvertex::directional_light() and rayvertex::point_light() along with the rayvertex::add_light() function to specify lighting for your scene when rayvertex_lighting = TRUE.
rayvertex_shadow_map: Default FALSE. If TRUE and rayvertex_lighting = TRUE along with software_render = TRUE, shadow mapping will also be applied to the rendered scene.
...: Additional parameters to pass to rayvertex::rasterize_scene().

Value

Displays snapshot of current rgl plot (or saves to disk).

Examples

if(run_documentation()) {

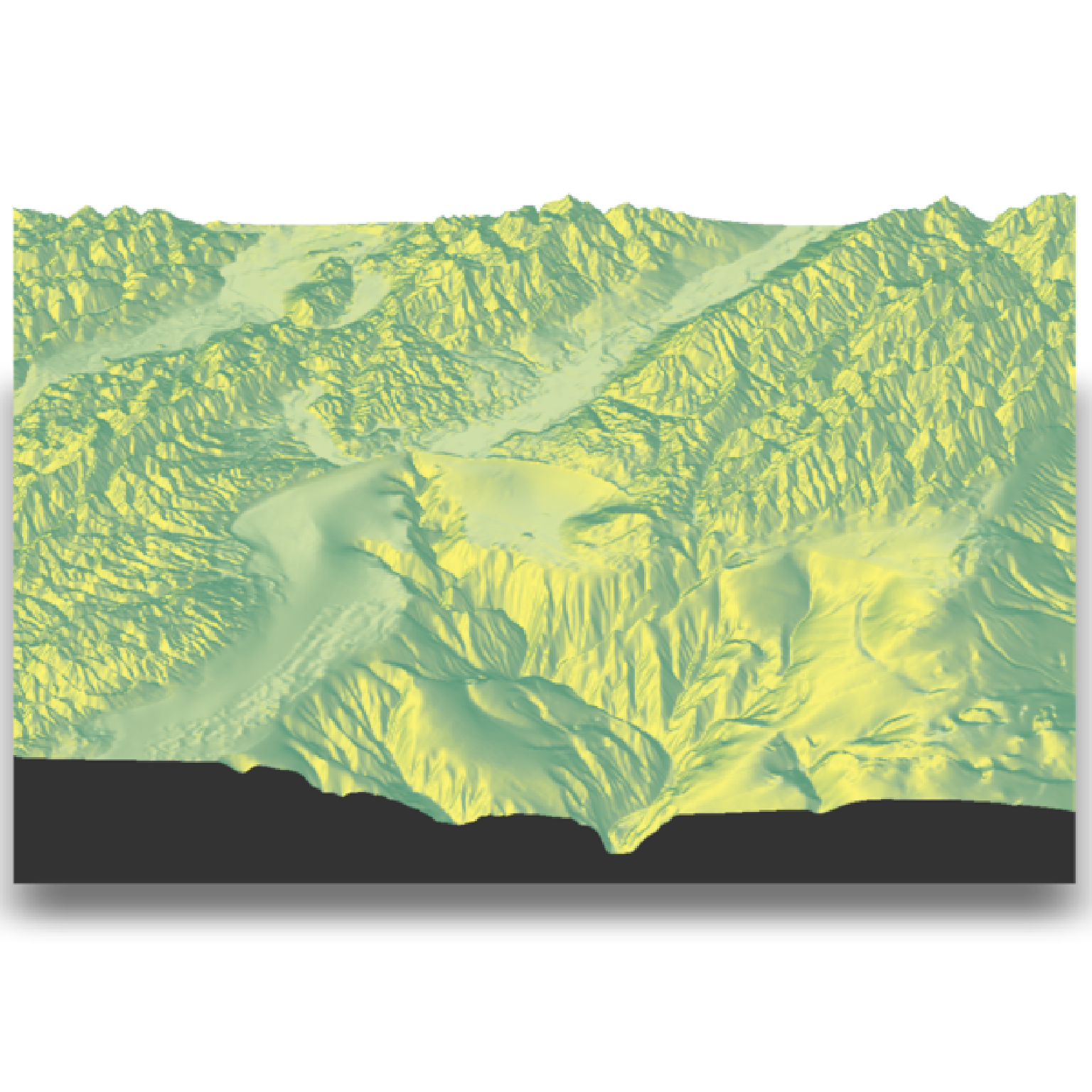

montereybay %>%
 sphere_shade() %>%
 plot_3d(montereybay,zscale=50,zoom=0.6,theta=-90,phi=30)
}

if(run_documentation()) {
render_snapshot()
}


#Create a title
if(run_documentation()) {
render_snapshot(title_text = "Monterey Bay, California", title_offset=c(0,20),
               title_color = "white", title_bar_color = "black",
               title_font = "Helvetica", title_position = "north")

#Add a vignette effect
render_camera(zoom=0.8)
render_snapshot(title_text = "Monterey Bay, California",
               title_color = "white", title_bar_color = "darkgreen",
               vignette = TRUE, title_offset=c(0,20),
               title_font = "Helvetica", title_position = "north")
}
#> Error in rayvertex::rasterize_scene(scene, lookat = camera_lookat, camera_up = camera_up,     filename = filename, fsaa = fsaa, lookfrom = lookfrom, width = width,     height = height, ortho_dimensions = ortho_dimensions, fov = fov,     background = background, light_info = lights, line_info = rayvertex::add_lines(labelline,         pathline), line_offset = line_offset, shadow_map = rayvertex_shadow_map,     ...): unused argument (title_position = "north")
#Use software rendering to render a scene with shadow mapping
if(run_documentation()) {
montereybay |>
 height_shade() |>
 plot_3d(montereybay, shadow=FALSE, solidlinecolor = NULL)

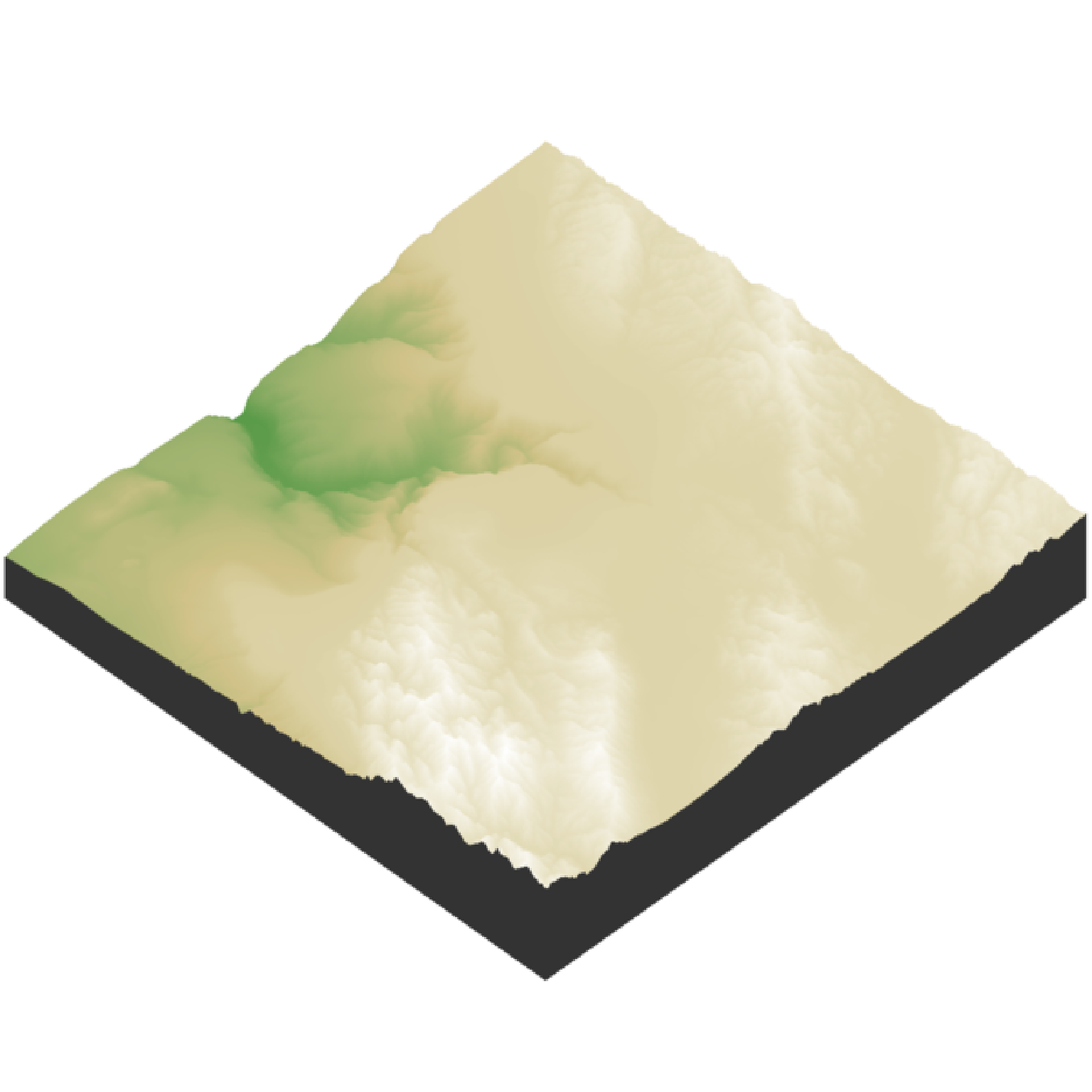

#No shadows
render_snapshot(software_render = TRUE)
}
#> `montereybay` dataset used with no zscale--setting `zscale=50`.  For a realistic depiction, raise `zscale` to 200.

if(run_documentation()) {

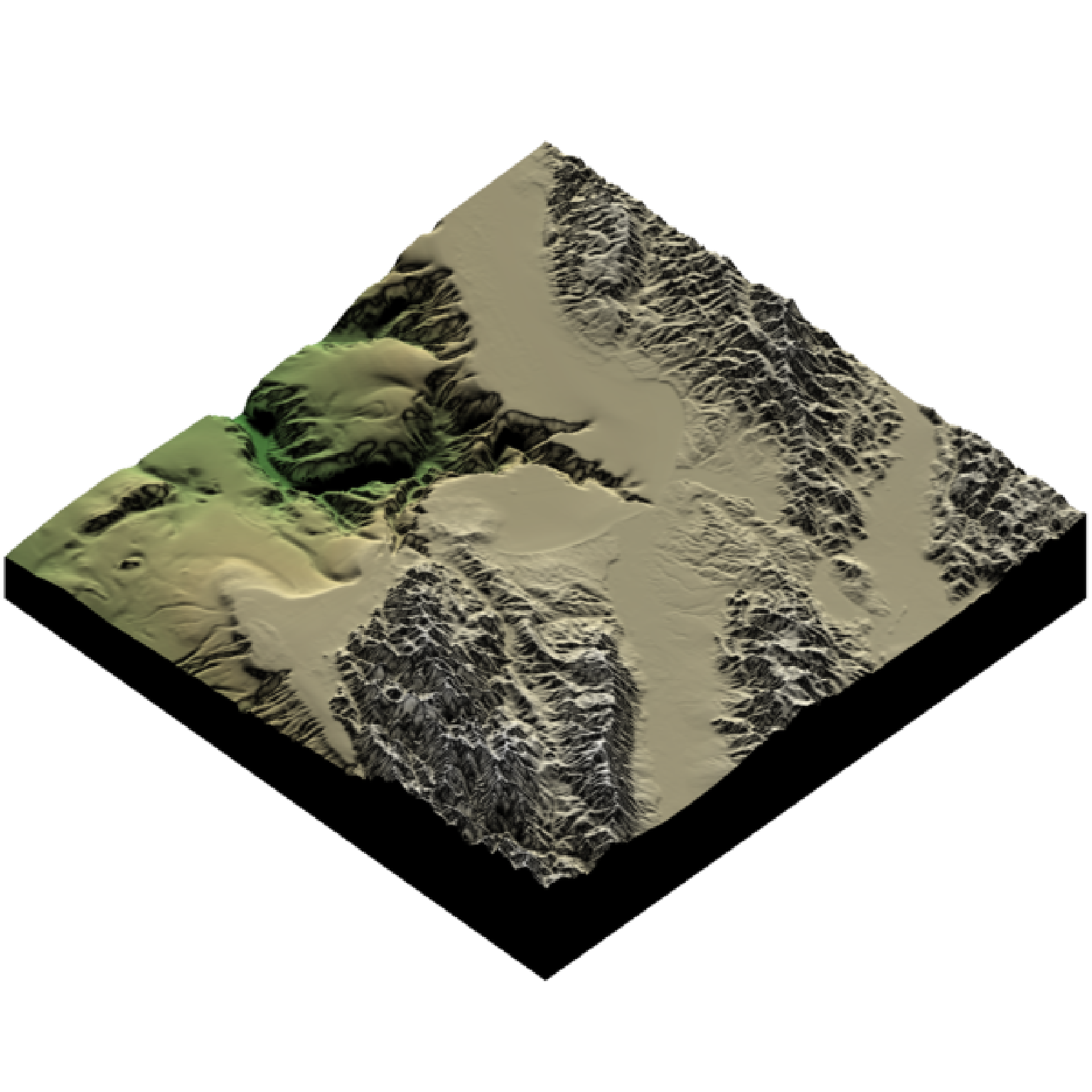

#Now with shadow mapped shadows, calculated in rayvertex
render_snapshot(rayvertex_lighting = TRUE,
               rayvertex_lights = rayvertex::directional_light(intensity = 1.2,
                                                               direction = c(-1, 1, -1)),
               rayvertex_shadow_map = TRUE, software_render = TRUE)
}
